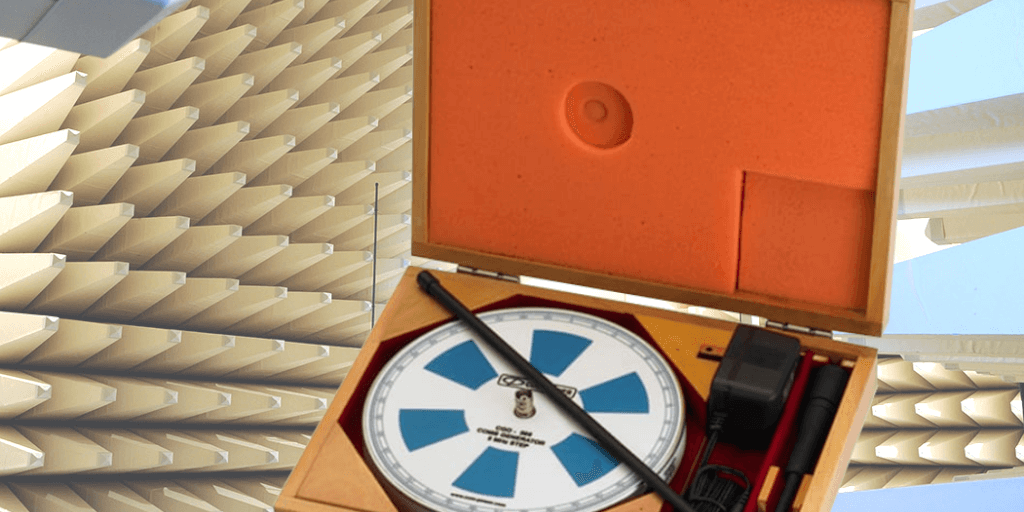

Com-Power model CGO-501 Comb Generator is a broadband EMC signal source for a fast EMC test. It generates a signal up to 1000MHz in 1MHz steps
EMC labs regularly calibrate their instrumentation, accessories and test sites for radiated emissions. These procedures are extensive and time consuming. However, calibration does not prevent equipment from malfunctioning between calibration periods due to, for example, damaged receivers, broken cables, bad connections, bent antennas, etc.
Regularly monitoring a single frequency on the comb generator’s broadband output can verify the entire installation quickly and efficiently. Any problems with the test setup can be detected before it causes incorrect results.
It has a round shape for a more uniform radiated output, offers a stable RF output and is battery powered for up to 18 hours of use.
Summarized:
- Reference signal source for OATS, SAC, FAC, etc.
- Frequency range: 1 MHz to 1.5 GHz
- Frequency step: 1 MHz
- Frequency stability: 20 ppm
- Amplitude stability : ± 0.1 dB
- Time stability: <1 dB for 1 year
- Two Monopoles 5-inch and 12-inch antennas
- 17.8 x 3.0 cm and 0.7 kg
In addition to this CGO-501, Com-Power has several versions up to 40GHz.
